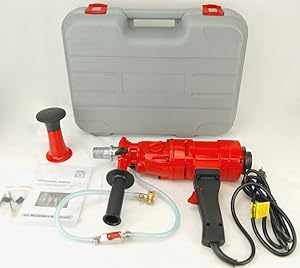

CORE DRILL Model 4Z1 2-SPEED CONCRETE CORING DRILL by BLUEROCK TOOLS

CORE DRILL Model 4Z1 2-SPEED CONCRETE CORING DRILL by BLUEROCK TOOLS


 Specifications:

•     Max Drilling Diameter: 4"
•     Rated Voltage: 110V
•     Rated Frequency: 50-60Hz
•     Rated Input Power: 1500W
•     Dual Speed: 2100rpm/950rpm
•     Arbor size is 1 1/4" 7UNC (Industry standard, most common coring bit mounting type)
•     See our BLUEROCK brand core bits
•     Contact BLUEROCK directly with any questions
•     For concrete, asphalt and masonry drilling

Tips for drilling a wall correctly

Drilling is one of the most frequent tasks in the home, so we give you some practical tips so that the holes are as you want.

Prevent the holes from being crooked or too large when drilling the walls of your home with these tips that we have designed for you.

Use the drill without problems

First you need to know what type of material you are going to drill. The bit you use and the procedure depends on the material to be worked. For simple jobs, for example porous concrete, a conventional cordless drill is sufficient.

Before drilling, check that there are no electrical cables or water pipes behind the wall.

Always wear protective gloves and goggles when drilling.

Avoid drilling crooked holes by placing the tip of the bit perpendicular to the surface of the material and actuate the tool. Wait for the bit to find a firm base to put pressure on the tool.

If you are drilling on delicate surfaces, such as tiles, stick some tape at the point where you will be drilling. The rough surface of the tape prevents the bit from slipping and making holes larger than you want.

How to drill holes in concrete using black granite or masonry drill bits SDS

Information on drilling in concrete
Drilling masonry and concrete products requires some special tools and accessories. When drilling concrete, brick or block, we are working with a large amount of aggregate, sand and gravel, bonded with Portland cement. To cut this material, we need to use a tapping or hammering motion, as well as a twisting motion. This strong movement separates the grains of sand and attachments, and the rotary movement of the drill pulls the material up the hole.

How to Select the Right Drill and Bit for Your Concrete Drilling Project

HAMMER DRILL WITH GRANITE BIT RAZOR BACK

Hammer Drill with Granite Razor Back Bit

Hammer drills are ideal for drilling holes up to ⅝ "in masonry. Hammer drills generally have two functions: they can use the normal rotary drilling function to drill steel or wood, but when you need to drill into concrete, use the function of hammer. The hammer function is driven by two small discs inside the drill, which have very fine serrated edges. As they rotate within the mechanism, the serrated edges provide very fine hammering and twisting motion, making it useful for drill holes no larger than ⅝ ”.

The bits granite Razor Back EAB carbide drills are industrial grade designed for use with heavy hammer drills. These bits are necessary when drilling holes in any masonry material, such as concrete, brick, block, concrete, stucco, and granite tile and pavers. Its precision carbide tips ensure fast starts, and its deep spirals remove waste quickly.



SDS ROTARY HAMMER DRILL WITH EAB SDS BIT
An SDS rotary hammer drill is ideal for drilling holes larger than ½ "and up to 1½" in diameter in masonry and aggregate material. SDS rotary drills generally have three functions: a standard drilling function, a hammer function, and for drilling in concrete, a combination of drill and hammer function. This tool is much more powerful than the standard hammer drill mentioned above. It uses a piston-type device that moves the hammering process up to ¾ "and therefore has a much larger throw. Due to this additional power, an SDS rotary hammer drill is the preferred tool for jobs that require drilling. of dozens of holes in concrete.

The SDS EAB bits are indexable carbide tip dual professional quality, designed to fit all SDS rotary hammer drills. Its precision carbide tips are harder and more resistant to extreme loads for a longer life. Unique flute design speeds dust removal and reduces heat build-up and bit wear.

How to cut holes in tiles and ceramic products
For cutting holes in ceramic, porcelain, glass, granite and marble tile, check out EAB's selection of professional and industrial grade diamond tip saw bits .



Interchangeable to save money and save the planet
Like all Exchange-A-Blade eco-friendly exchange products, Razor Back granite bits and SDS bits are fully interchangeable - you buy it, you use it, and when you return it to the store where you bought it, they'll give you a credit. for the purchase of your next EAB bit.


Exchange-A-Blade Bit Information
Exchange-A-Blade bits are market leaders in quality and value. Available in a wide range of sizes for drilling holes in wood, metal, and concrete products. EAB has something for everyone, no matter what their job is.

WEN 4208T 2.3-Amp 8-Inch 5-Speed Benchtop Drill Press

 WEN 4208T 2.3-Amp 8-Inch 5-Speed Benchtop Drill Press

•  Features a 2.3A induction motor, an 8-inch swing, and a 2-inch spindle travel
• Includes a 1/2-inch keyed chuck and onboard key storage
• Operates at 5 different speeds: 740, 1100, 1530, 2100, or 3140 RPM
• 6.5 by 6.5 inch height adjustable worktable bevels up to 45 degrees in each direction
• Measures in at 23 inches tall with a 7 by 11-inch base

How To Use A Drilling Press Like A Chuck Press

A drill is a device that helps the user to push a hole in a material. The drill press is not as heavy and powerful as the mandrel press, so if you want to use the first as the second, you will need to be very careful with how you apply it. The drill is not designed to withstand as much weight and pressure as the chuck, so unless you handle the drill correctly you will likely damage the press.

• Step 1 - Making the drill on a mandrel
• Step 2 - Making the Supports
• Step 3 - Testing the Press

the drill is a device that helps the user to drill a hole in a material. The drill press is not as heavy and powerful as the mandrel press, so if you want to use the first as the second, you will need to be very careful with how you apply it. The drill is not designed to withstand as much weight and pressure as the chuck, so unless you handle the drill correctly you will likely damage the press. Using the drill as an arbor press needs to be done very carefully in order to avoid this kind of damage.

Step 1 - Making the drill on a mandrel
Before you put the drill bit into a mandrel press, you will need to check the method by which your drill presses the drilled item. The best type of drill to use as a mandrel is the floor mounted press, as it is more stable than the bench press or standalone drill. You'll also need to note how much leverage the drill needs when you're drilling a hole in an item, as this will give you an idea of ​​how much pressure you have available. Once you're sure your drill is stable, you'll need to build some brackets around the edge to give your printer more strength.

Step 2 - Making the Supports
The best method of supporting your printer is to use pieces of iron tubing. You can build your brackets using a simple screwdriver and screw or a drill. Make sure your brackets are connected to a solid floor, then fasten them to the sides of the drill. The brackets must support the weight of the press, so you will need at least 3 pieces of iron, which will be fitted into a triangular shape, with the 2 highest points touching the top of the press and being bolted to the sides of the press , and the third shorter piece, fitting horizontally against the two, and being screwed against the press.

Step 3 - Testing the Press
Your drill should now have enough support to drill a hole in something that needs a mandrel press. Try this out using the lightest piece of metal you need to drill through. Insert it into the bottom frame of your press so that it is in an upright position. You should then take your compression strap and raise it as high as possible before pressing down firmly on the metal. You may need to use both hands to force the lever down as far as possible. When you have done this, remove the metal from the support frame and examine the hole. You should also check that the press itself has not been damaged before continuing to drill holes.

Small drilling presses

A drill is primarily used as a drilling tool, but its other useful features make the machine more reasonable for training. There is a wide variety of accessories for a drill, and these accessories add to the usefulness of the machine. The drill provides the ability to control the diameter, depth and angle of the hole while drilling, but you can also use one for sanding, grinding, shaping and mortifying as well.

A small drill bit is used to drill very small holes with high precision. They are used ​​for soft materials such as gold, wood, brass, etc. Some important points to buy a good small drill are presented below.


Keep in mind a few things before buying a small drill.

• Check the drill concentricity according to your requirement.
• Check the tightening capacity of the punch press. If the drill presses hard on the material, your job will be easier.
• Smaller chucks provide more precision. So try to choose a drill that has smaller, smooth-acting chucks.
• Check motor and shaft speed. The speed provided by the drill must be variable. This will help you to work as per the speed requirement for the material used.
• Choose the drilling machine that has a smooth work surface. Ideally, the work surface is attached perpendicular to the axis of the drill. Don't believe the labeled configuration, check the veracity of the table yourself.
• The most important thing is to check the drill feed. If the feed is hard, it means that there is something wrong with the machine, and you will have problems while working. Feeding should be gentle.
• Machines that have a rack and pinion mechanism for the table provide more precision and smooth table adjustment.

CAMERON 164 SERIES
This small perforation is very common. It has a single speed motor, and the spindle speed can be varied at three different speeds – 9,500, 17,000 and 30,000 RPM. It has a smooth rack and pinion feed and is capable of drilling small 0.002 “To 5/32” holes. The shafts, pulleys and motors are dynamically balanced, which facilitates smooth machine operation. A plastic safety guard is used to position the belt and pulley.

Mini Drill Press
This drill is mainly developed for jewelers. This drill press can also be used for soft materials such as wood, plastics, etc. This machine can drill a ¼ inch hole with ¼ inch brass easily. This drill is designed so that you can change the drill speed to suit your job in seconds. The selling price of this machine is comparatively low.

Dumore Micro Drill
This little bit can drill small size pieces. The height of the punch press is approximately 1 foot. You can drill them with holes smaller than 0.0135”. A rotary control knob is used on this drill. It is used to lift the work platform for the drill.

The maximum speed of this unloaded drill is 17,000 RPM due to its 1/16 hp motor. This drill is best for small precision objects such as jewelry and circuit boards. It can also be supplied with a chuck wrench and product manual with it.

Levin Micro Drill
This is a very special type of drill that can drill small holes less than 1/8” in diameter. This drill press can drill very small parts compared to others. The table of this drill is adjusted by rack and pinion mechanism instead of feather. This property makes it very sensitive. It provides four drilling speeds because 2-step pulleys are used on both the spindle and the motor.
